PN330

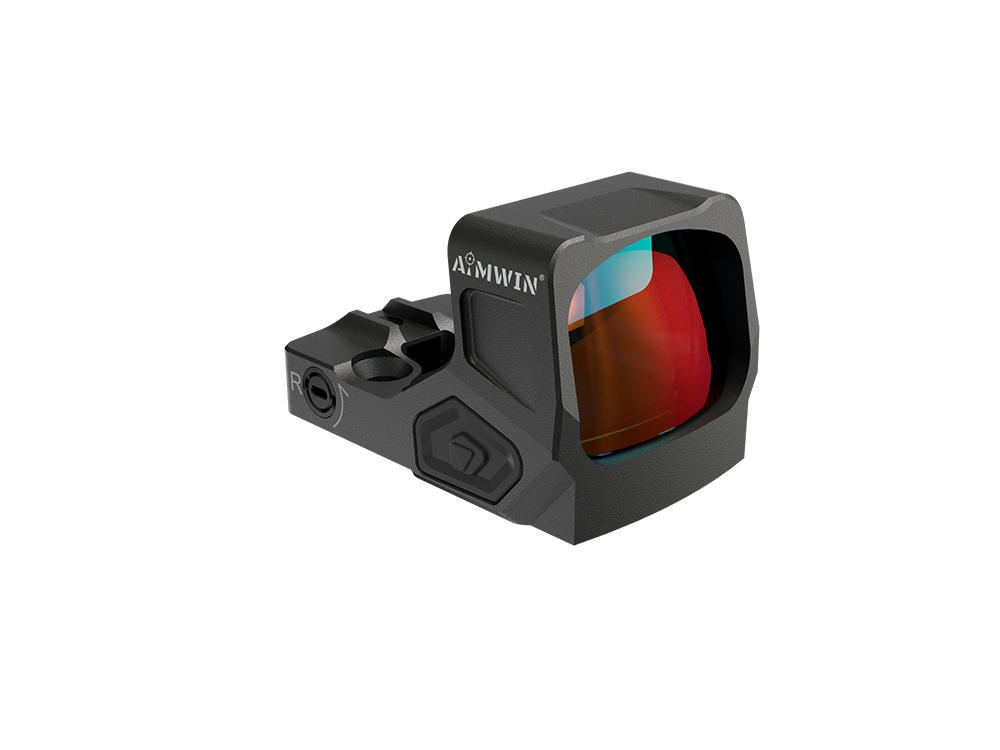

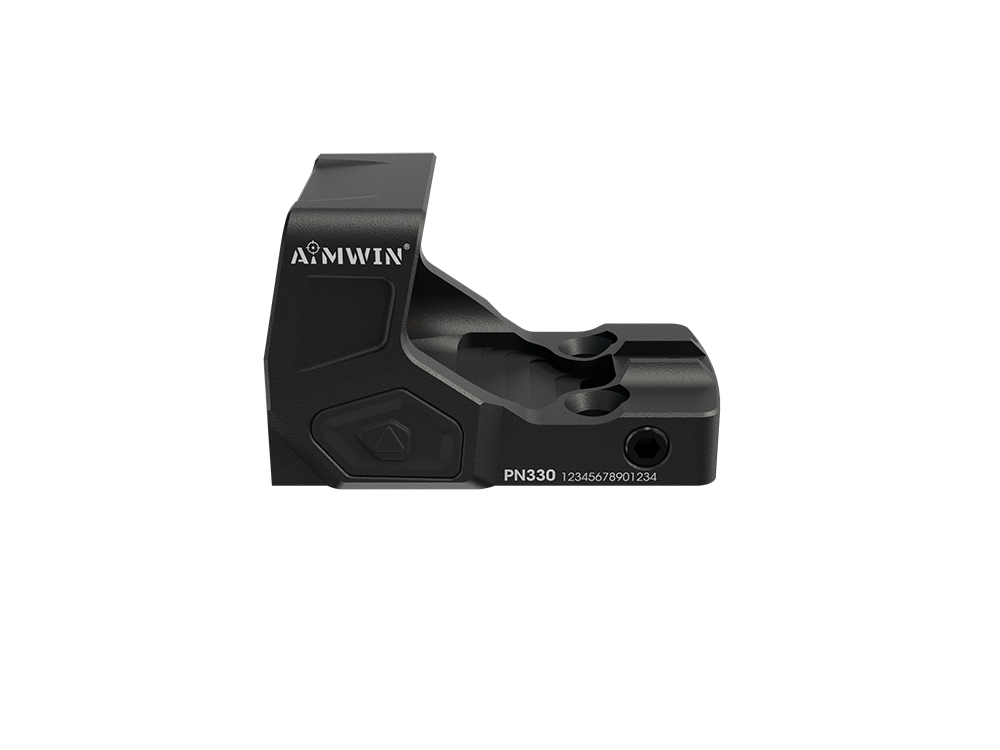

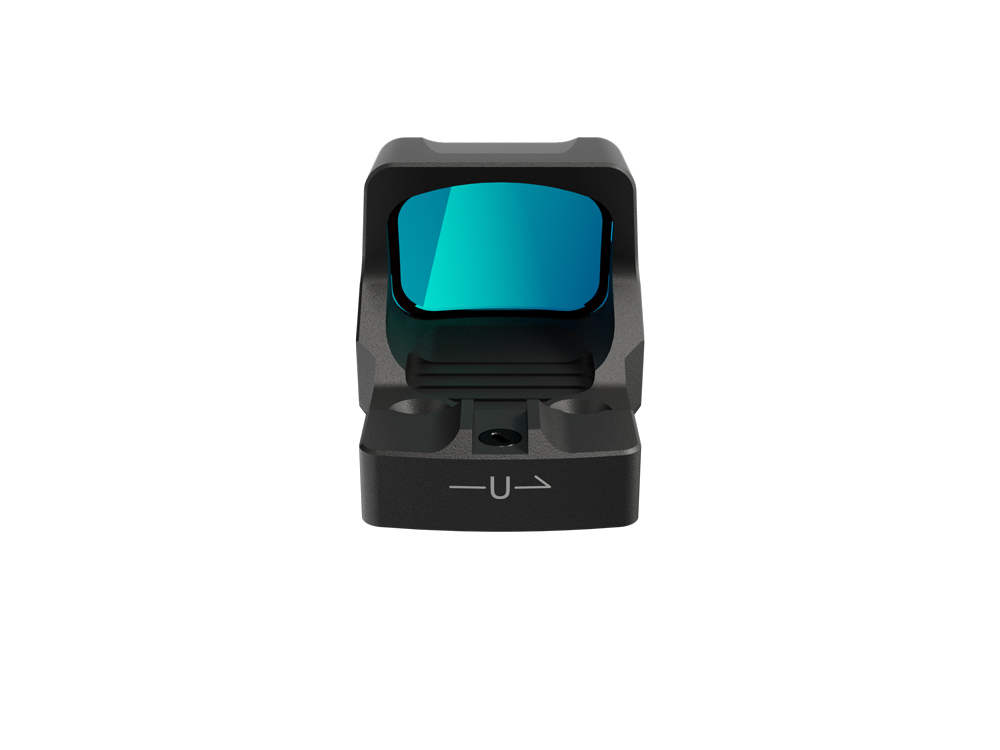

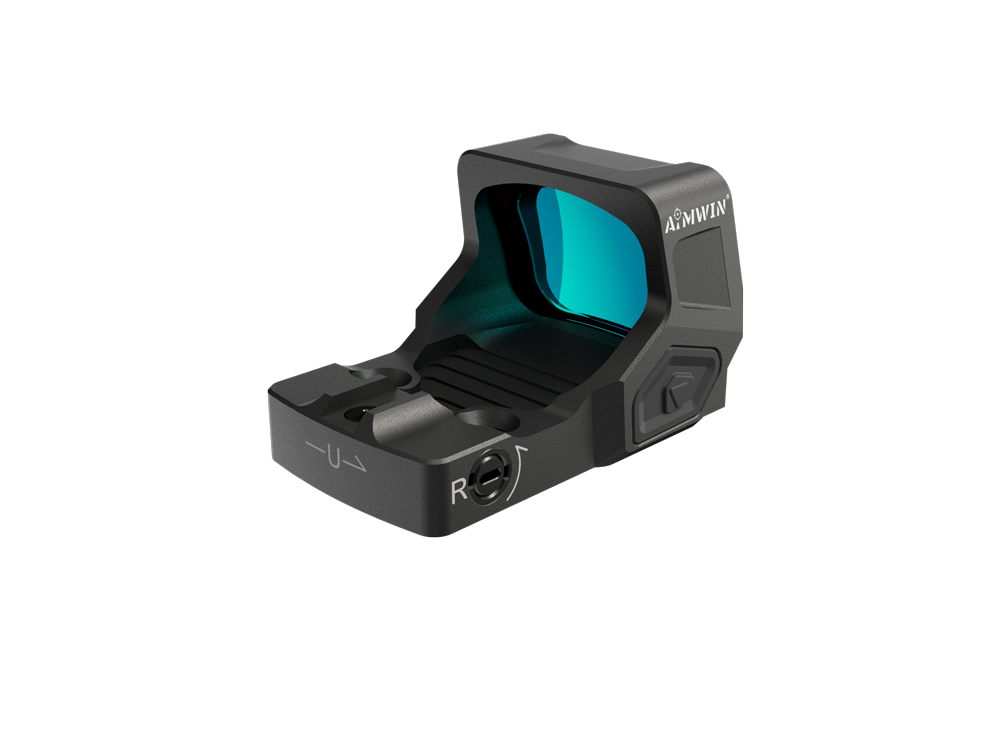

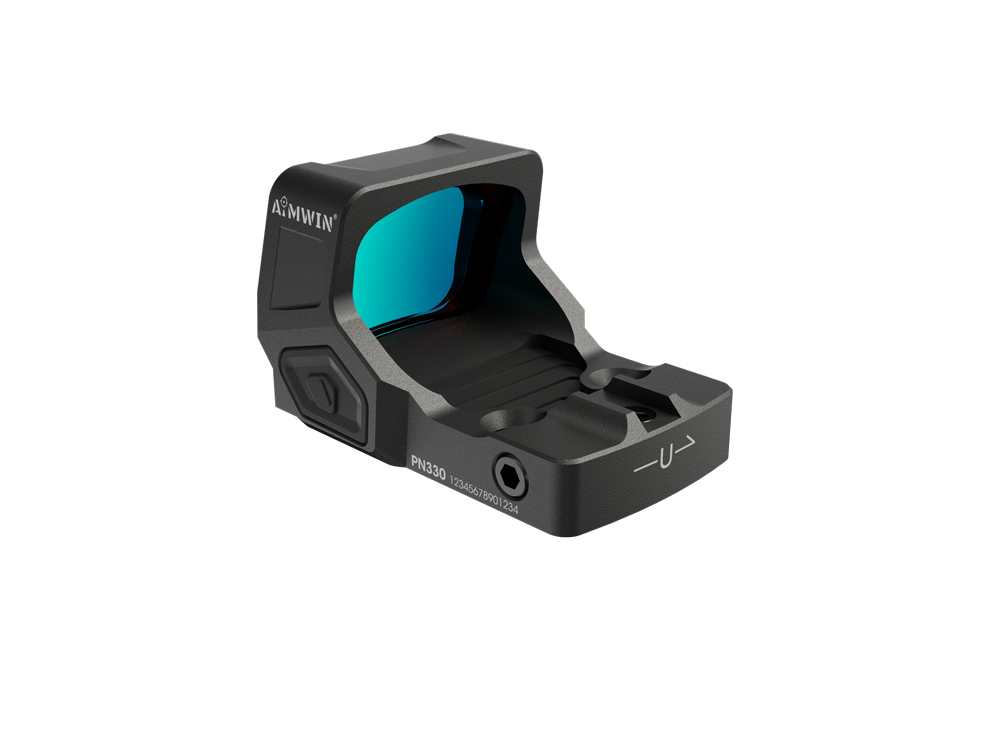

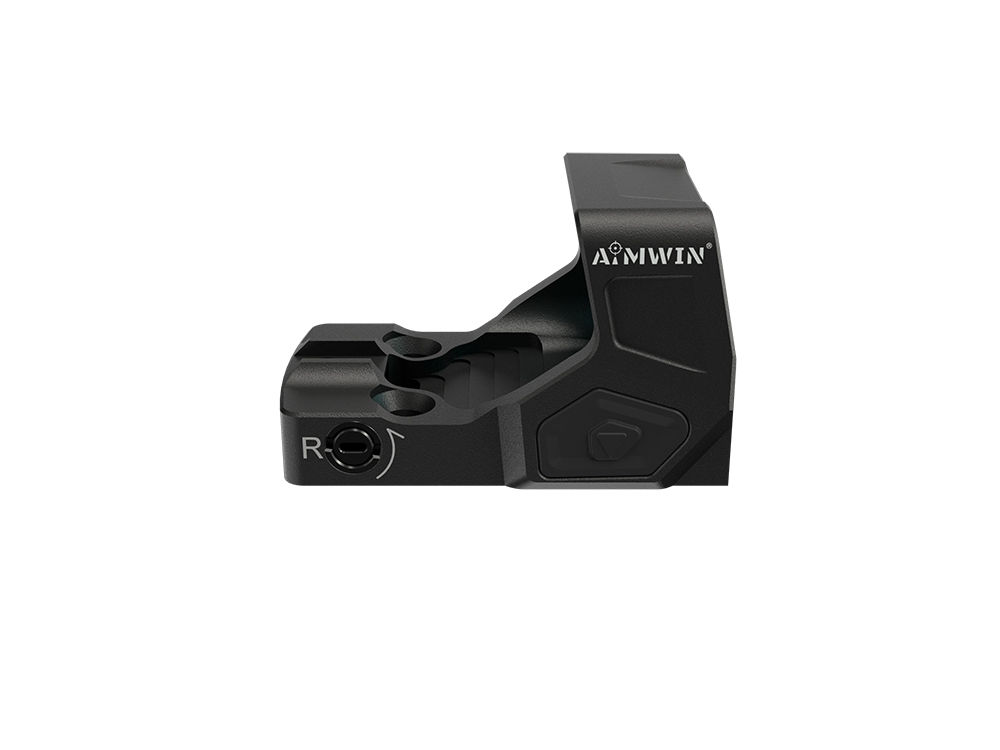

The AIMWIN PN330 Open Reflex Sight is specially designed for pistols, featuring a 2 MOA dot and a 32 MOA circle. It is available with 11brightness settings and multiple reticle options. Powered by a CR2032 lithium coin battery, it provides a max runtime of 20,000h. Thanks to a motion sensor, it will automatically activate and access the previous memorized brightness level when detecting any movement in Standby Mode. The durable housing is constructed from aluminum alloy A7075-T6 with a hard-anodized finish.

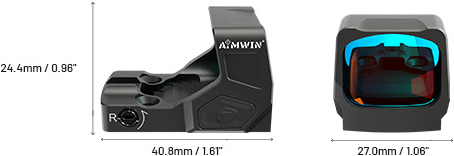

Dimensions

Package List

· CR2032 Battery

· L-Shaped Wrench x 2

· Lens Cloth

· Screw (S/M/L)x4

· User Manual

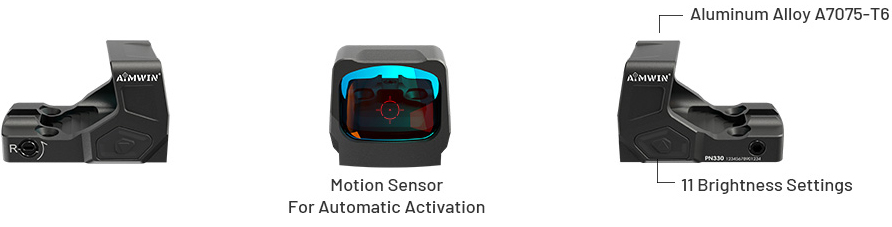

FEATURES

2 MOA Dot Size & 32 MOA Circle Size

Multiple Reticle Options

Aim Awake Mode
Motion Sensing Activation
Parallax Free
Aluminum Alloy
A7075-T6

Aim Awake Mode:
1. The PN330 will automatically access the Aim Awake Mode if there is no movement for 5 minutes.
2. When detecting any movement in the Aim Awake Mode, it will access the previous memorized brightness level.
Parallax Free
Aluminum Alloy A7075 T6

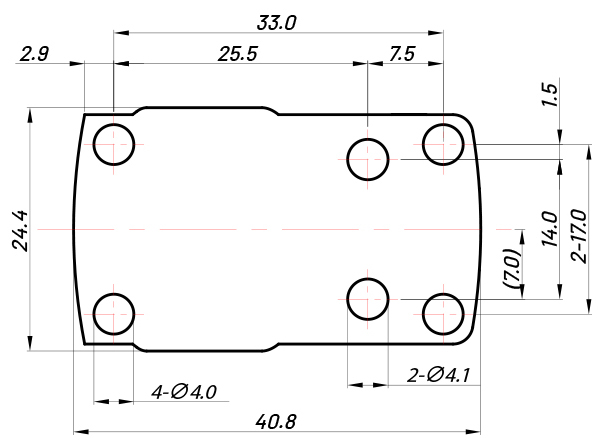

Footprint

Specifications

Dot Size	2 MOA	Window Size	22.0mm x 16.5mm
Circle Size	32 MOA		(0.87" x 0.65")
Reticle Color	Red	Dimensions	40.8mm x 27.0mm x 24.4mm
Light Wavelength	650nm		(1.61" x 1.06" x 0.96")
Parallax	Parallax Free	Weight	23g (0.81 oz) (Battery Included)
Magnification	1x	Housing Material	Aluminum Alloy A7075-T6
Windage & Elevation Travel Range	±45 MOA	Surface Finish	Hard-anodized
Battery	CR2032	Footprint	RMS-C
Battery Life	20000h	Operating Temperature	-20℃~60℃
Brightness Settings	9 Daylight Levels		(-4℉~140℉)
	2 Night Vision Levels	Water Resistance	IPX7
		Vibration	2000G
