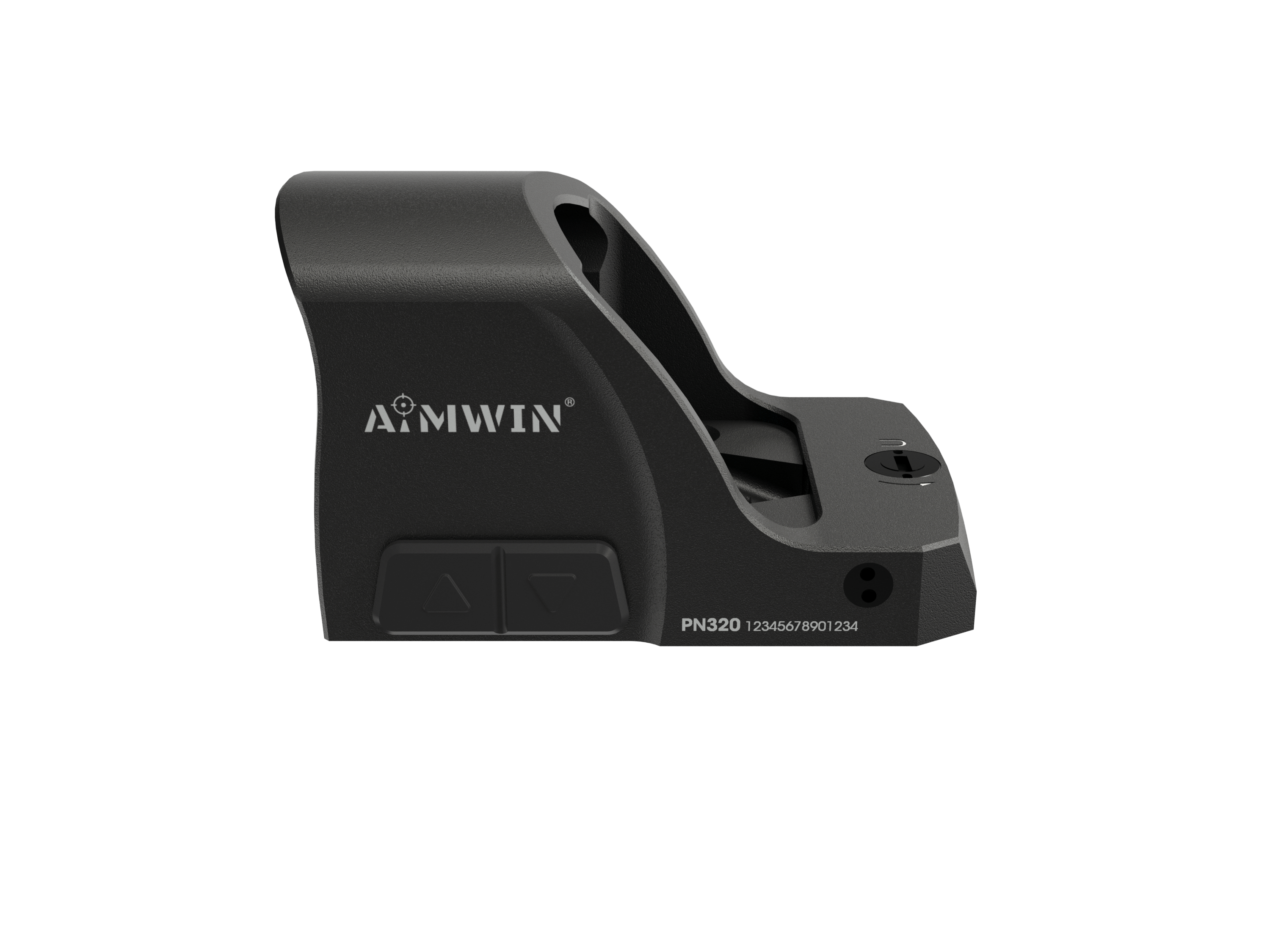

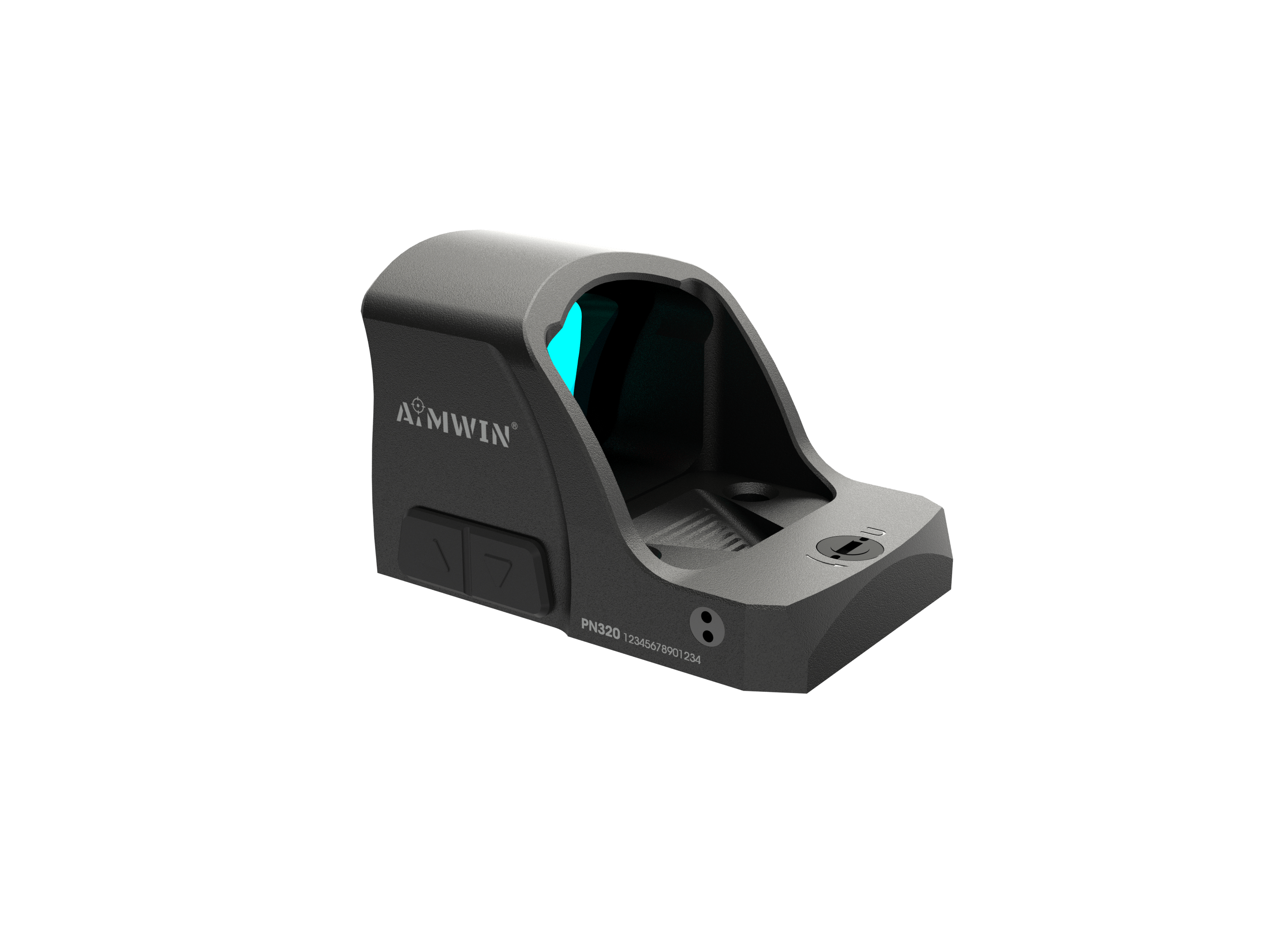

PN320
The AIMWIN PN320 Open Reflex Sight is specially designed for pistols, featuring a 2 MOA dot and a 32 MOA circle. It is available with 11brightness settings and multiple reticle options. Powered by a CR1632 lithium coin battery, it provides a max runtime of 10,000h. The side loading battery design allows for easy replacement, and thanks to a motion sensor, it will automatically activate and access the previous memorized brightness level when detecting any movement in Standby Mode. The durable housing is constructed from aluminum alloy A6061-T6 with a hard-anodized finish.

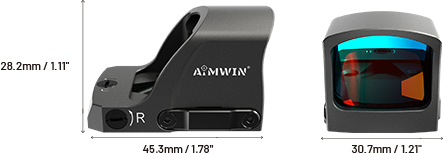

Dimensions
Package List
· CR1632 Battery
· Double-Ended Wrench
· Small Wrench
· Lens Cloth
· Screw x 2
· User Manual

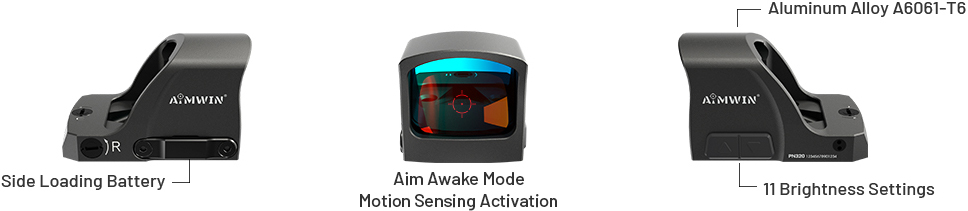

FEATURES
2 MOA Dot Size & 32 MOA Circle Size
Multiple Reticle Options

  • Side-loading
    Battery Design

  • Aim Awake Mode
    Motion Sensing Activation

  • Low Power
    Indlcation

  • Parallax Free

  • Aluminum Alloy
    A6061-T6
  1. Side-loading battery design
  2. Aim Awake Mode:
  3. The PN320 will automatically access the Aim Awake Mode if there is no movement for 5 minutes.

    When detecting any movement in the Aim Awake Mode, it will access the previous memorized brightness level.

  4. Low power indication:
    1. The reticle flashes slowly when in low-power
  5. Parallax Free
  6. Aluminum Alloy A6061-T6

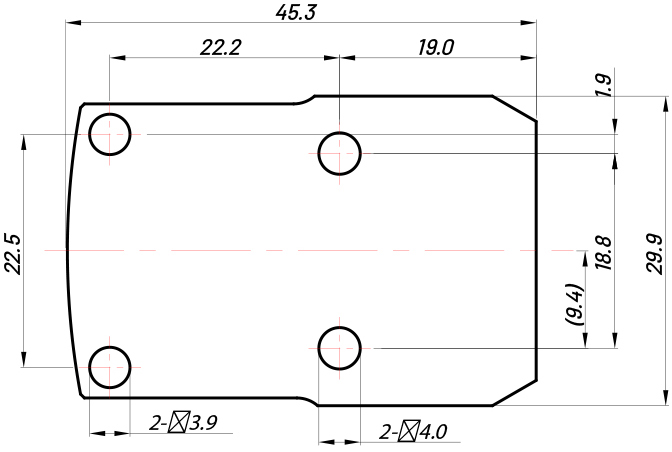

Footprint

Specifications
Dot Size2 MOAWindow Size24.0mm x 19.5mm
Circle Size32 MOA(0.94" x 0.77")
Reticle ColorRedDimensions45.3mm x 30.7mm x 28.2mm
Light Wavelength650nm(1.78" x 1.21" x 1.11")
ParallaxParallax FreeWeight38g (1.34 oz) (Battery Included)
Magnification1xHousing MaterialAluminum Alloy A6061-T6
Adjustment per Click1MOASurface FinishHard-anodized
Windage & Elevation Travel Range±50 MOAFootprintRMR
BatteryCR1632Operating Temperature-40℃~60℃
Battery Life10000h(-40℉~140℉)
Brightness Settings9 Daylight LevelsWater ResistanceIPX7
2 Night Vision LevelsVibration2000G
