Aimwin Red Dot Reflex Pistol Sight ‎RMSc PE320-AIMWIN

New product

$359.95

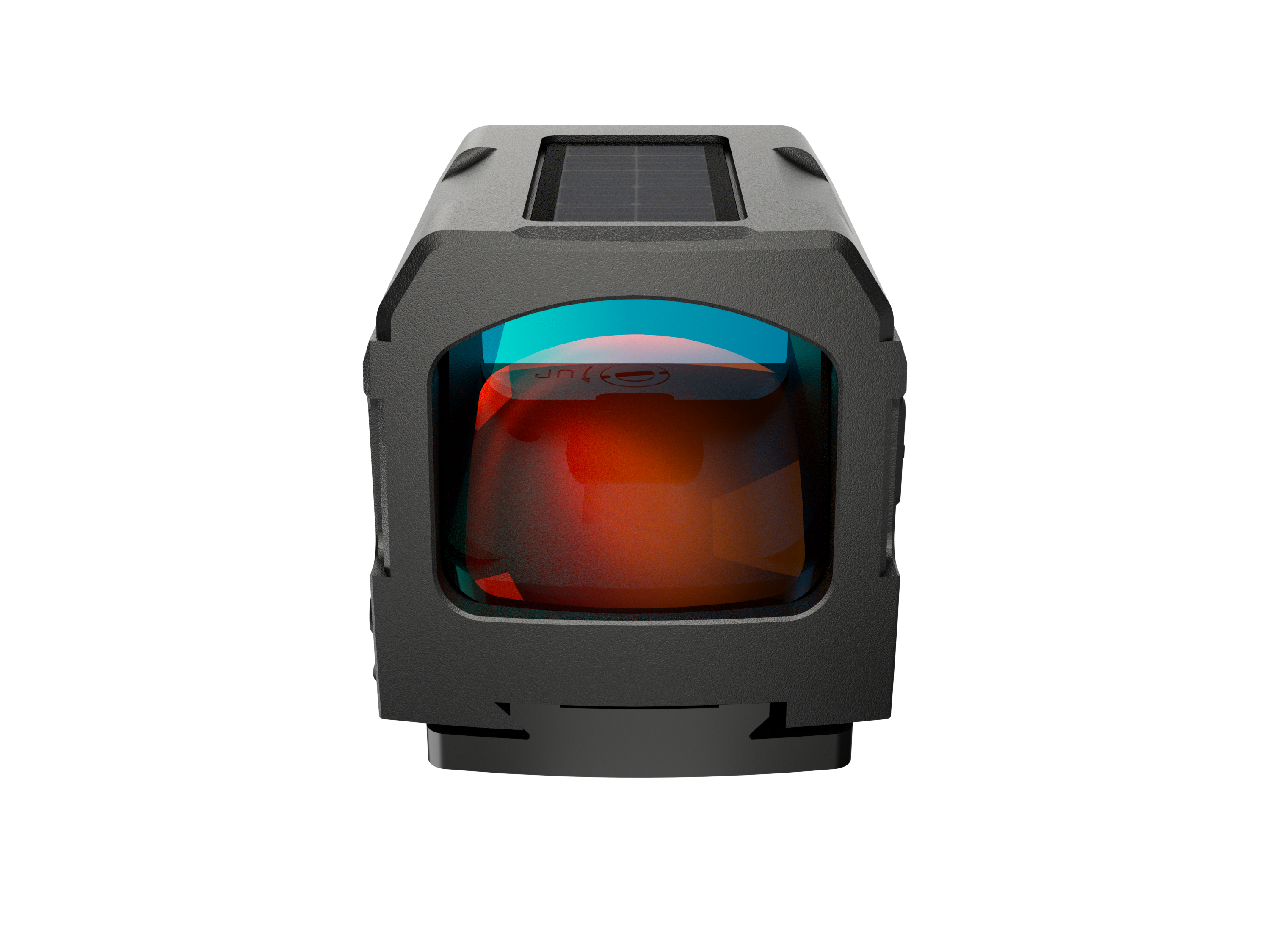

Aimwin Red Dot Reflex Pistol Sight ‎RMSc PE320

Overview

Specifications

Review（0）

Manual Download

PE320

The AlMWIN PE320 Enclosed Pistol Sight is expertly designed for pistols.offering precision, versatility, and durability. lt features a 3 MOA dot and 36MOA circle, with multiple reticle options and 11 brightness settings-9daylight levels and 2 night vision levels.Powered by a CR2032 lithium coinbattery and a solar cell, the PE320 boasts an impressive 50,000-hourmaximum runtime. lts built-in motion sensor ensures instant activation.restoring the last memorized brightness level upon movement detection.Crafted from A6061-T6 aluminum alloy with a hard-anodized finish, thissight is built for rugged use.it also offers lPX7-rated waterproofing,ensuring reliable performance in harsh conditions.

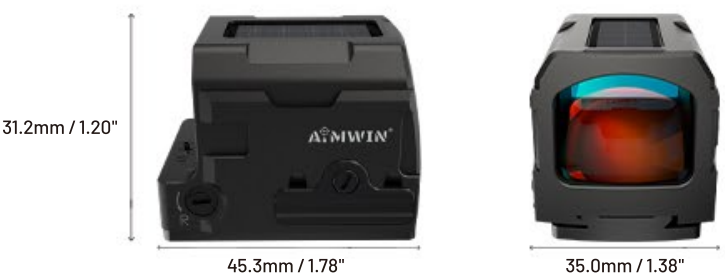

Dimensions

Aimwin Dot Reflex Pistol Sigh PE320 size

Package List

· CR2032 Coin Battery

· L-Shaped T10 Torx Allen Wrench

· L-shaped Flat Tip Wrench×1

· Adapter Plate

· Screw Ax3

· Screw Bx3

· Screw Cx3

· Screw Dx2

· Lens Cloth

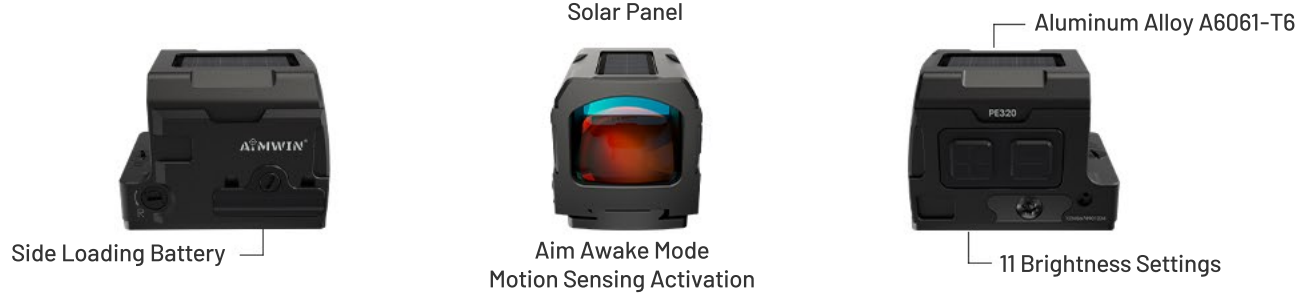

FEATURES

2 MOA Dot Size & 36 MOA Circle Size

Multiple Reticle Options

Aimwin Dot Reflex Pistol Sigh PE320 FEATURES

Side-loading
Battery Design
Aim Awake Mode
Motion Sensing Activation
Parallax Free
Aluminum Alloy
A6061-T6
Solar Panel

Side-loading battery design
Aim Awake Mode:
1. The PE320 will automatically access the Standby Mode if there is no movement for 5 minutes.
2. When detecting any movement in the Aim Standby Mode, it will access the previous memorized brightness level.
Low power indication
1. The dot flashes slowly when in low-power.
Parallax Free
Aluminum Alloy A6061-T6
Solar Panel

Footprint

Specifications

Dot Size	3 MOA	Window Size	24.0mm x 20.0mm
Circle Size	36 MOA		(0.94" x 0.79")
Reticle Color	Red	Dimensions	45.3mm x 35.0mm x 31.2mm
Light Wavelength	650nm		(1.78" x 1.38" x 1.2")
Parallax	Parallax free	Weight	62g (2.19oz) (without adapter plate)
Magnification	1x	Housing Material	Aluminum Allo A6061-T6
Adjustment per Click	1MOA	Surface Finish	Hard-anodized
Windage & Elevation Travel Range	±50 MOA, total range 100 MOA	Footprint	RMR to ACRO adapter plate
Battery	CR2032 & Solar Panel	Operating Temperature	-30℃~60℃
Battery Life	When in low brightness 50,000h		(-22°F~140°F)
Brightness Settings	9 Daylight Levels	Water Resistance	IPX7
	2 Night Vision Levels	Vibration	2,000G
